90251245

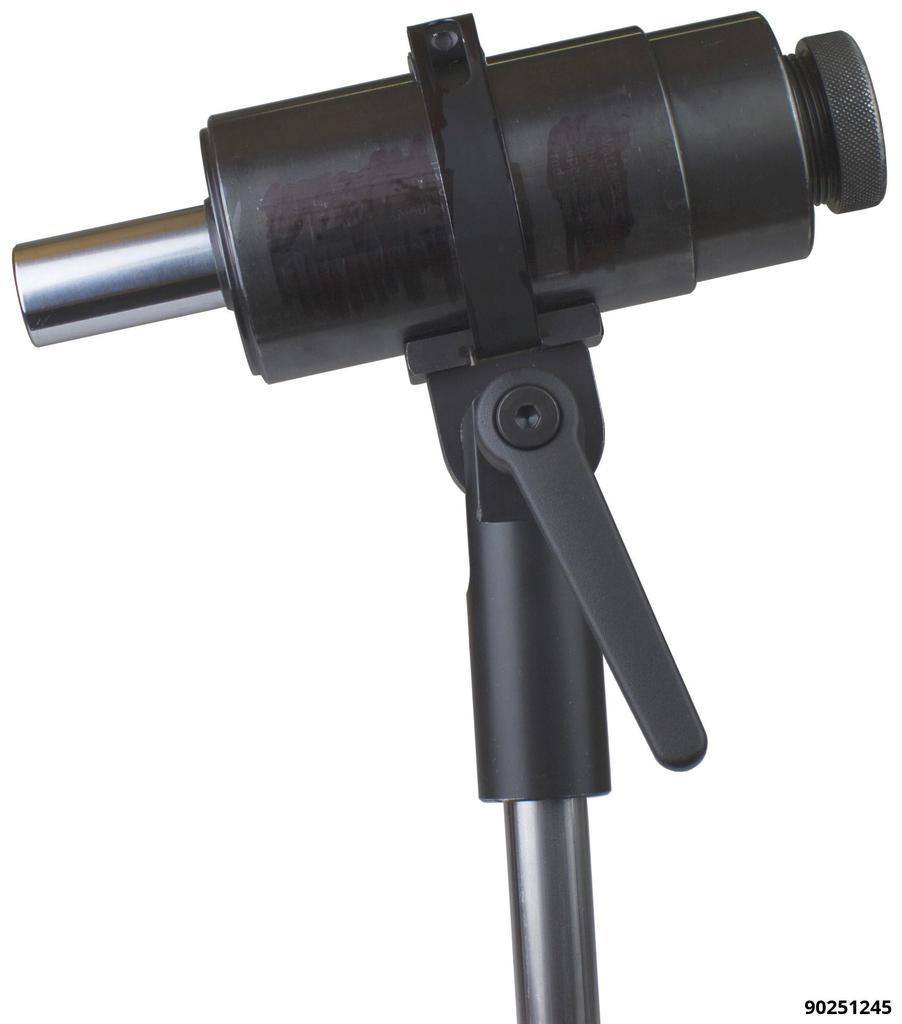

transmission Jack Support Brackets for Hydraulic Cylinders 16,22 & 32 tons. 65 to 100mm diameter Cylinders (non wallmek).

These brackets are designed to support the cylinders weight with either a floor stand or transmission jack. Also other cylinder brands and types from Ø65 – 100 mm can be mounted using these brackets. Fit’s floor stand and transmission jack shaft diameter 25 & 30 mm.

Use with cylinder:
(18 T)
(22 T)
(32 T)

Parts in the set,
Holder without clamps
Clamp Ø70 mm
Clamp Ø85 mm
Clamp Ø100 mm
Available separately
