9091500
UNIVERSAL GLOW PLUG COMPRESSION TEST KIT M8X1 M9X1 M10X1 M10X1.25 WITH GAUGE

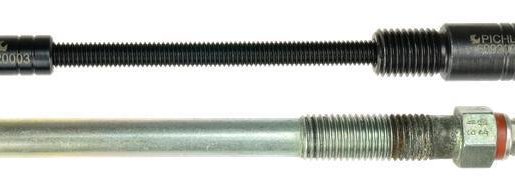

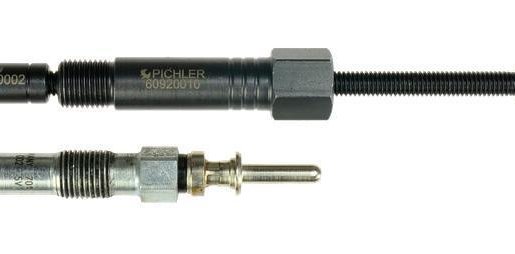

The tool can be easily assembled to recreate the vehicles original glow plug size and length.

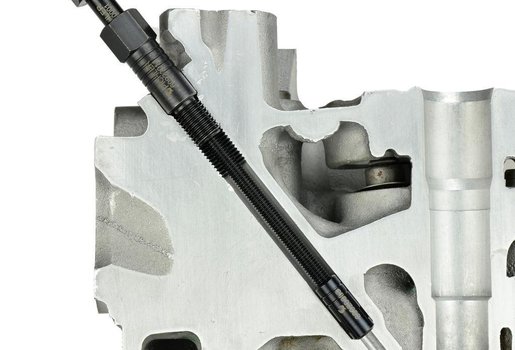

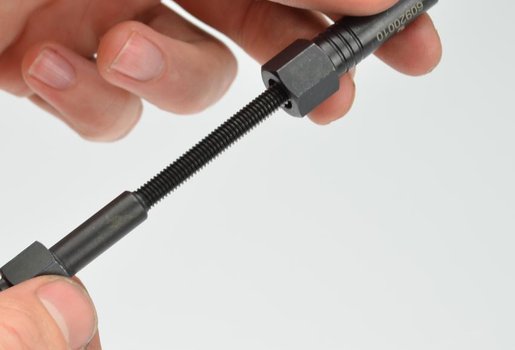

Simply choose the correct glow plug thread adapter (M8, M9, M10), screw in the threaded tube and attach the sealing cone. Install the tool into the glow plug hole, the threaded tube is then screwed downwards until the sealing cone makes contact with the bottom of the glow plug hole. Once the compression test has been completed, the tool can be removed and installed into the the next glow plug hole.

* Create any size of glow plug on new and old vehicles
* Sealing cone angles 60° / 90° / 120°
* No down time not having the correct size test glow plug

Compression Test Gauge:
- 0-70 Bar
- with flexible 40 cm long hose
- with pressure relief valve
- quick coupling for easy changing the adapters
- with a 90° angled adapter for hard to reach places

Content:
Universal Diesel Compression Test Gauge
Sealing Cone 63° Ø 8,2 mm
Sealing Cone 93° Ø 8,2 mm
Sealing Cone 63° Ø 6,8 mm
Sealing Cone 123° Ø 6,8 mm
Screw-In Adapter M8x1
Screw-In Adapter M9x1
Screw-In Adapter M10x1
Screw-In Adapter M10x1,25
Double Open Ended Spanner
Adapter Tube
Adapter for connecting the Test Gauge with the Screw-In Adapters
Angle Gauge 60°, 90° & 120° for determining the seal seat angle
