9091500
UNIVERSAL GLOW PLUG COMPRESSION TEST KIT M8X1 M9X1 M10X1 M10X1.25 WITH GAUGE

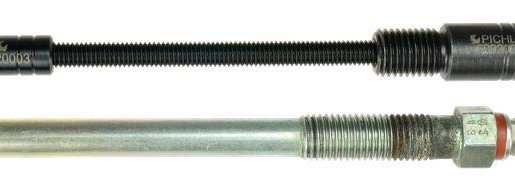

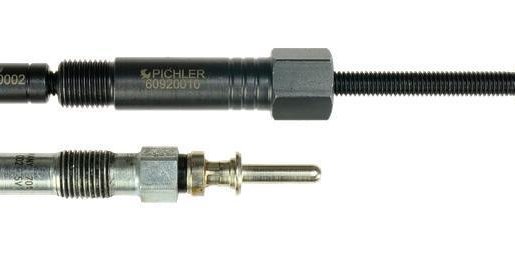

The tool can be easily assembled to recreate the vehicles original glow plug size and length.

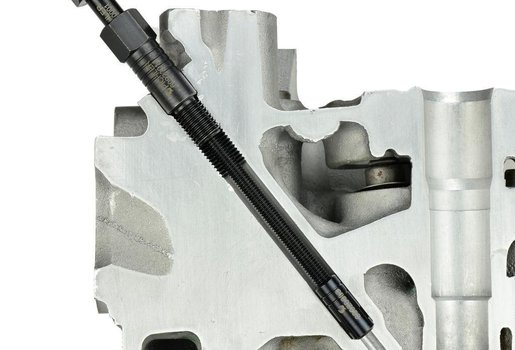

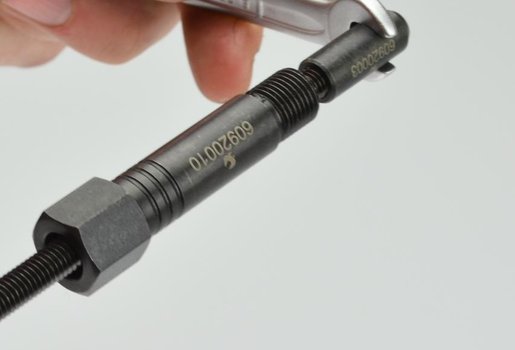

Simply choose the correct glow plug thread adaptor (M8, M9, M10), screw in the threaded tube and attach the sealing cone. Install the tool into the glow plug hole, the threaded tube is then screwed downwards until the sealing cone makes contact with the bottom of the glow plug hole. Once the compression test has been completed, the tool can be removed and installed into the the next glow plug hole.

• Create virtually any size of glow plug on new and old vehicles
• Sealing cone angles 60° / 90° / 120°
• No down time not having the correct size test glow plug

Compression Test Gauge:
- 0-70 Bar
- with flexible 40 cm long hose
- with pressure relief valve
- quick coupling for easy changing the adaptors
- with a 90° angled adaptor for hard to reach places

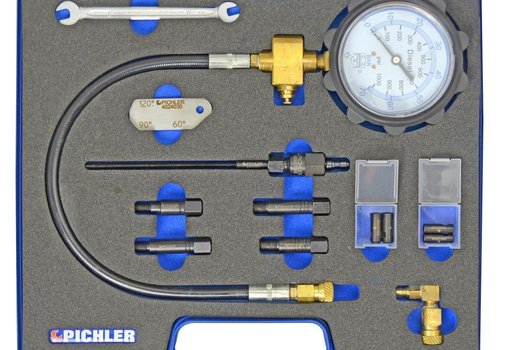

Content:
Universal Diesel Compression Test Gauge
Sealing Cone 63° Ø 8.2 mm
Sealing Cone 93° Ø 8.2 mm
Sealing Cone 63° Ø 6.8 mm
Sealing Cone 123° Ø 6.8 mm
Screw-In Adaptor M8x1
Screw-In Adaptor M9x1
Screw-In Adaptor M10x1
Screw-In Adaptor M10x1.25
Double Open Ended Spanner
Adaptor Tube
Adaptor for connecting the Test Gauge with the Screw-In Adaptors
Angle Gauge 60°, 90° & 120° for determining the seal seat angle
